UL1332

Description

What is UL1332 wire?

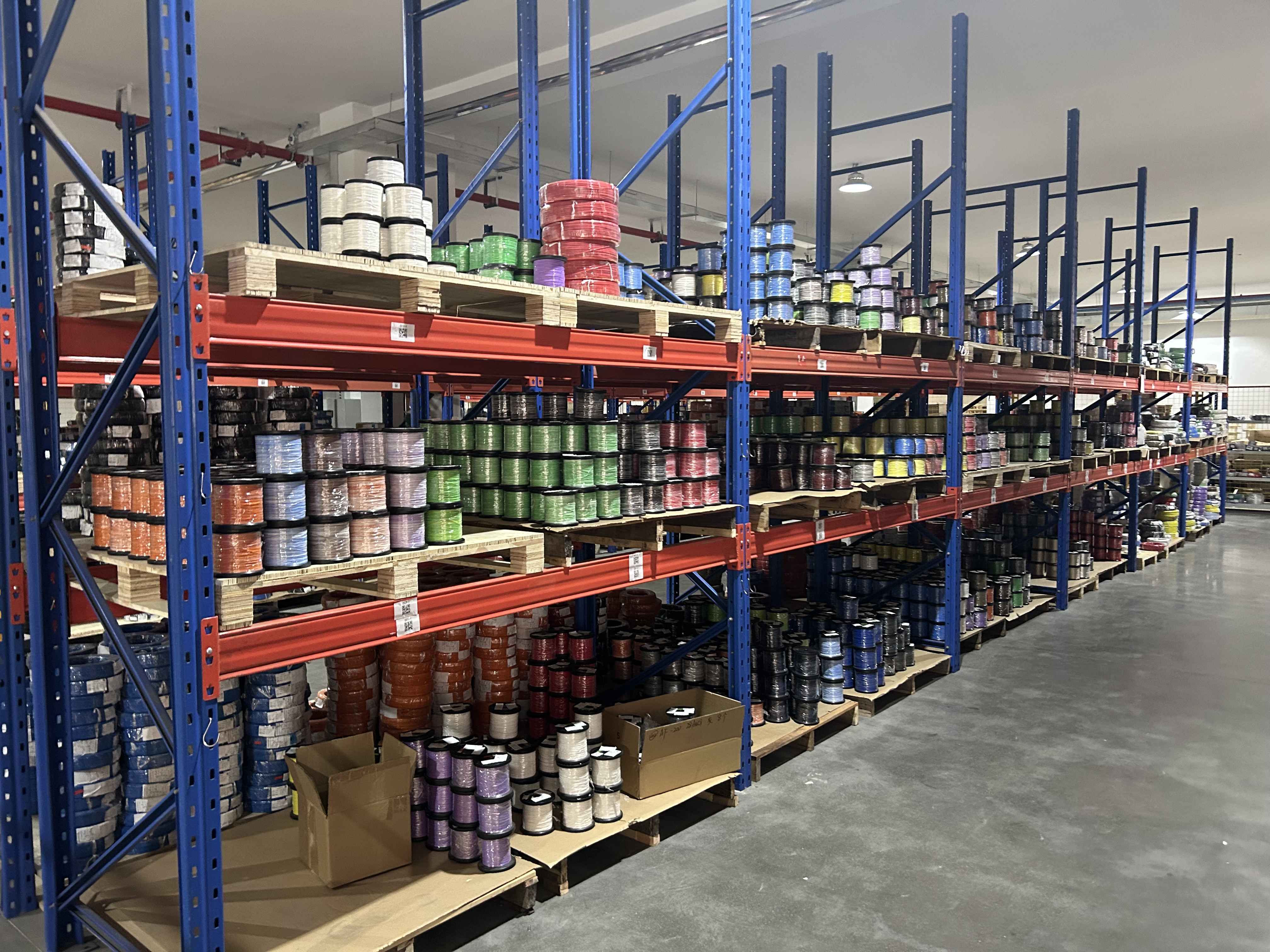

UL1332 is a model of the American standard(UL certification) for Teflon high-temperature wire, Its insulation material is FEP(Fluorinated ethylene propylene). The chemical activity of this compound is very stable, and it can withstand acid and alkali, oil, high temperature, corrosion, UV protection, flame retardancy, low temperature, etc. So UL1332 wire is a high-temperature, high-voltage, flame retardant electrical wire, which is widely used in the electronics, communications, telecommunications, metallurgical Industry, and electronic Equipment Market. UL1332 wire can withstand a temperature of 250 degrees and a voltage of 1200V(according to UL standards, Long term withstand voltage is only 300V), UL1332 wire meets UL758 and UL1581 standards, RoHS, and VW-1 flame resistance. The commonly used specifications of UL1332 wires are: 18awg, 20awg, 22awg, 24awg, 26awg, and 28awg. and we can offer you free samples for the UL1332 wire as we have many stocks in our warehouse.

UL1332 wire specification

• RATING: 200 deg C, 300 Vac, Horizontal flame, Oil Resistant 80 deg C (optional), Gasoline Resistant (opt)
• CONDUCTOR: 30 AWG - 10 AWG solid or stranded round(tinned copper, silver plated copper).
• INSULATION: Extruded FEP, 13 mils min average, 12 mils minimum at any point.
• COVERING: (Optional) Extruded FEP, 2 mils or heavier, or glass braid 7 mils or heavier.
• STANDARD: Appliance Wiring Material UL 758

We can customize the specifications of UL1332FEP wires, like customizing the color, and customize the insulation thickness, If you need higher withstand voltage, then its insulation thickness needs to be greater, We can also make two or three layers of FEP insulation. If you have perforation requirements, we can also make the wire diameter smaller to meet your requirements.

UL1332 wire Application

In our daily lives, UL1332 wires are widely used, such as in the home appliance industry, which can be used for internal wiring of microwave ovens, hair dryers, rice cookers, gas stoves, electric heaters, electric ovens, ultraviolet lamps, etc. In electronic products, it can be used for temperature compensation wires, low-temperature resistant wires, and high-temperature resistant internal wires; The UL1332 wire is ideal for use in applications such as motor outgoing wire, transformer outgoing wire, and battery pack outgoing wire, UL1332 is commonly used in electronic devices, remote pumps, enclosure connections, and automotive fields, the UL1332 wire is also used in UL-certified products if the total products must need UL certification and then the wires inside must be UL approved.

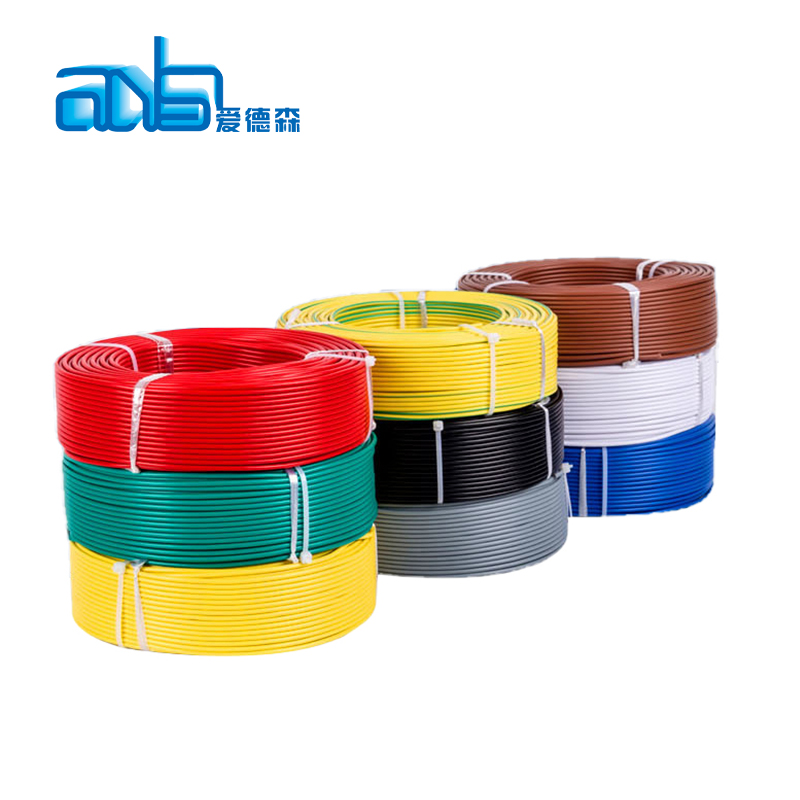

ADS CABLE produce FEP-insulated fluoroplastics wire ul1332 for many years, and we passed the UL certification in 2013, we can produce many kinds of colors for the UL1332 wires, like transparent FEP UL1332 16AWG, Red FEP UL1332 20AWG, Black FEP UL1332 18AWG, White FEP UL1332 28AWG, and so on.
