UL10588

Item Number:UL10588

Rated voltage: 600V
Working temperature: -40～+200℃

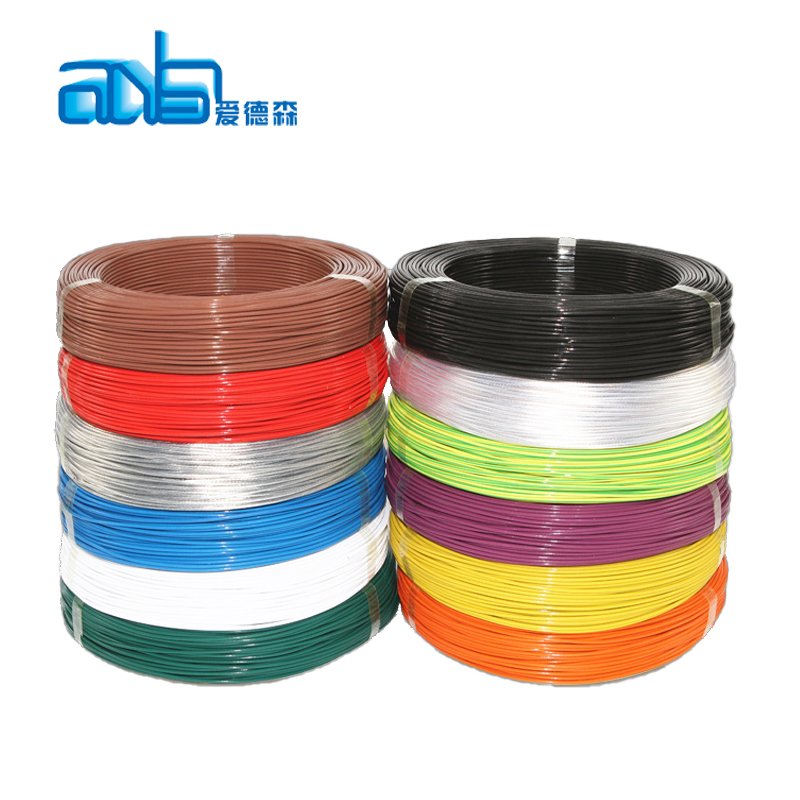

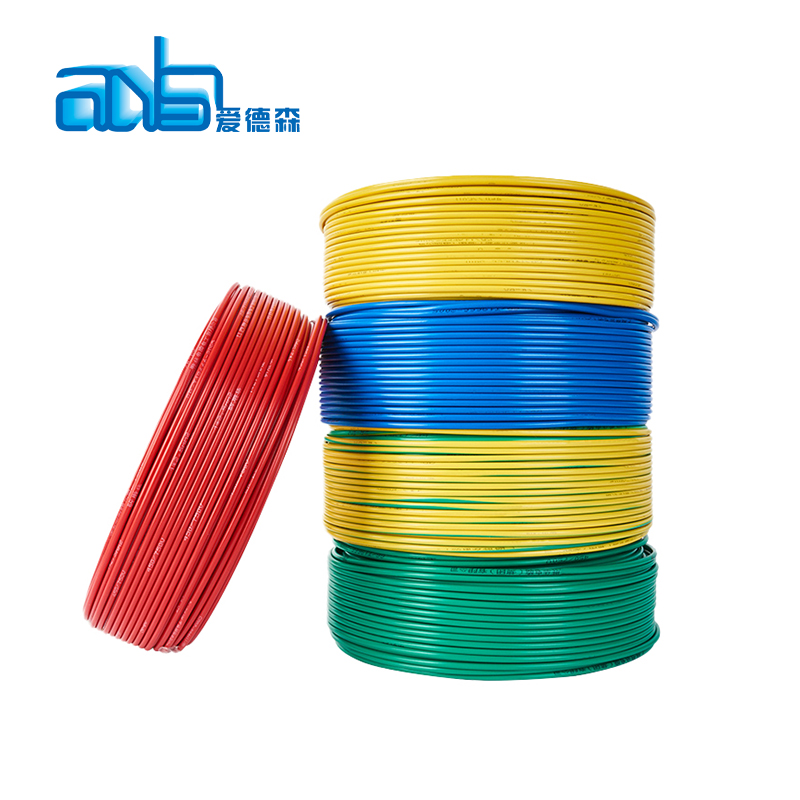

Color: red/yellow/blue/white/black/yellow-green/brown, etc.
Conductor: solid core or stranded TC/silver-plated copper wire
Insulation: FEP

Ratings/Approvals:

200°C – 600 Volts – UL758, UL1581
UL VW-1 Flame Rated
RoHS Compliant

Construction:

Conductors
50 AWG - 10 AWG
Solid or Stranded tinned copper, bare copper or silver-plated copper
(Other conductor materials available)

Insulating System
FEP insulation

Standard Color Coding
Available in Colors or Striped Combinations

Characteristics:

High temperature products:
- Temperature resistance 200 degrees
- Oil resistance, acid, and alkali resistance
- Virtually eliminates skin irritation
- Color stable at elevated temperatures
- Low Smoke Zero Halogen
Suitable for UV, ozone, or moisture exposure
Suited for liquid-immersed applications
Suitable for applications to -40°C

UL10588

Part No.	Temp Rating	Voltage Rating	Awg. Size	# Strands	Final O.D. (in)	Final O.D. (mm)	Wgt. (lbs/ Mft)	Wgt. (kg/km)	Min.Bend Radius (in)	UL	CSA
10588	200C	600V	22	7	0.08	2.03	5	7.44	0.64	758	AWM I A/B FT1
10588	200C	600V	20	7	0.087	2.21	6	8.93	0.7	758	AWM I A/B FT1
10588	200C	600V	18	16	0.096	2.44	8	11.91	0.77	758	AWM I A/B FT1
10588	200C	600V	16	7	0.108	2.74	11.64	17.32	0.86	758	AWM I A/B FT1
10588	200C	600V	14	41	0.12	3.05	16.8	25	0.96	758	AWM I A/B FT1
10588	200C	600V	12	65	0.137	3.48	25.08	37.32	1.1	758	AWM I A/B FT1
10588	200C	600V	10	105	0.166	4.22	38.92	57.92	1.33	758	AWM I A/B FT1
10588	200C	600V	8	133	0.231	5.87	64.35	95.77	1.85	758	AWM I A/B FT1
10588	200C	600V	6	133	0.307	7.8	105.32	156.74	2.46	758	AWM I A/B FT1

Description

What is UL10588 wire?

UL10588 Teflon wire is a high temperature hook up wire. it is an FEP Fluorinated ethylene propylene insulated wire, It can be used at a temperature of 200 degrees Celsius, Normally, it can be used at a high voltage of 600V, the FEP insulation thickness of the UL10588 wire is thinner than UL1332 wire, but the rated voltage is higher than UL1332 wire, So at a voltage below 600V, UL10588 can be said to be a very good substitute for UL1332, and the price is also cheaper. We can produce 10AWG UL10588 wire, 12 AWG wire, 14AWG wire, 15AWG wire, 16AWG wire, 17AWG wire, 18AWG wire, 20AWG wire, and to 30AWG wire for the UL10588 wire. and we can custom the color for you~
