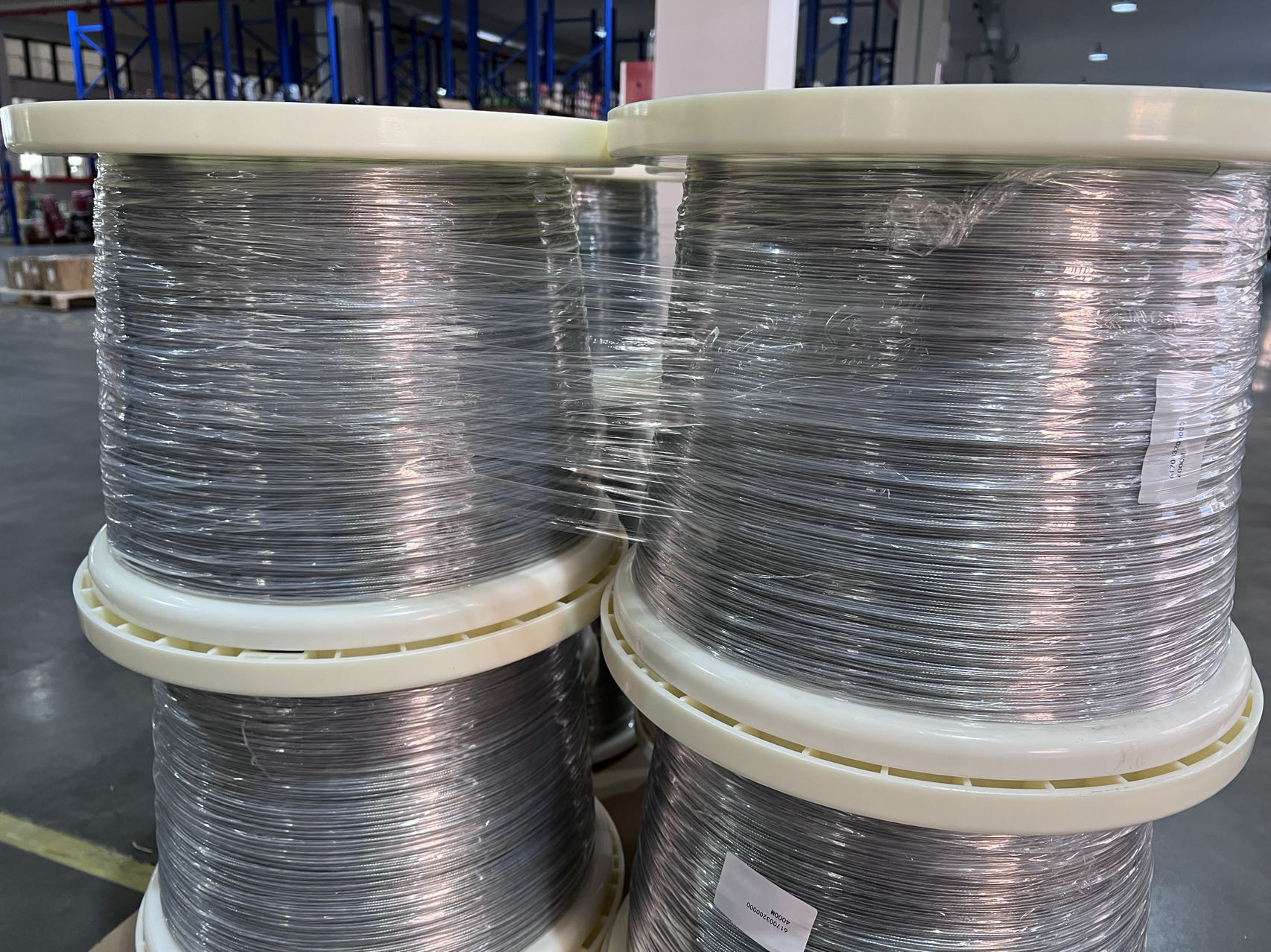

UL1331
UL1331
Item Number:UL1331
- Rated voltage: 600V
- Working temperature: -40～+150℃
- Color: red/yellow/blue/white/black/yellow-green/brown, etc.
- Conductor: solid core or stranded TC/silver-plated copper wire
- Insulation: FEP
Ratings/Approvals:
150°C – 600 Volts – UL758, UL1581
UL VW-1 Flame Rated
RoHS Compliant
Construction:
Conductors
30 AWG – 10 AWG
Solid or Stranded tinned copper, bare copper or silver-plated copper
(Other conductor materials available)
Insulating System
FEP insulation
Standard Color Coding
Available in Colors or Striped Combinations
Characteristics:
- High temperature products:
- Temperature resistance 150 degrees
- Oil resistance, acid, and alkali resistance
- Virtually eliminates skin irritation
- Color stable at elevated temperatures
- Low Smoke Zero Halogen
- Suitable for UV, ozone, or moisture exposure
- Suited for liquid-immersed applications
- Suitable for applications to -40°C
Categories
UL1331
| Part No. | Temp Rating | Voltage Rating | Awg. Size | # Strands | Final O.D. (in) | Final O.D. (mm) | Wgt. (lbs/ Mft) | Wgt. (kg/km) | Min.Bend Radius (in) | UL | CSA |
| 1331 | 150C | 600V | 22 | 7 | 0.08 | 2.03 | 5 | 7.44 | 0.64 | 3771 | AWM I A/B FT1 |
| 1331 | 150C | 600V | 20 | 7 | 0.087 | 2.21 | 6 | 8.93 | 0.7 | 3771 | AWM I A/B FT1 |
| 1331 | 150C | 600V | 18 | 16 | 0.096 | 2.44 | 8 | 11.91 | 0.77 | 3771 | AWM I A/B FT1 |
| 1331 | 150C | 600V | 16 | 7 | 0.108 | 2.74 | 11.64 | 17.32 | 0.86 | 3771 | AWM I A/B FT1 |
| 1331 | 150C | 600V | 14 | 41 | 0.12 | 3.05 | 16.8 | 25 | 0.96 | 3771 | AWM I A/B FT1 |
| 1331 | 150C | 600V | 12 | 65 | 0.137 | 3.48 | 25.08 | 37.32 | 1.1 | 3771 | AWM I A/B FT1 |
| 1331 | 150C | 600V | 10 | 105 | 0.166 | 4.22 | 38.92 | 57.92 | 1.33 | 3771 | AWM I A/B FT1 |
| 1331 | 150C | 600V | 8 | 133 | 0.231 | 5.87 | 64.35 | 95.77 | 1.85 | 3771 | AWM I A/B FT1 |
| 1331 | 150C | 600V | 6 | 133 | 0.307 | 7.8 | 105.32 | 156.74 | 2.46 | 3771 | AWM I A/B FT1 |
Description
What is UL1331 Teflon Wire?
Haiyan ADS Special Cable produce UL1331 wire for many years, UL1331 wire is UL-approved hook-up electrical wire for the single conductor with extruded FEP insulation, The voltage of UL1331 is higher than that of UL1332, so its FEP insulation layer is much thicker, and the rated voltage of UL1331 is 600V. UL1331 Teflon wire is commonly used in applications such as electrical equipment, heating elements, and the medical industry. The temperature of the UL1331 wire is 150C, ADS Cable can offer you free samples for the UL1331 Teflon FEP wire, We are the expert in the production of Teflon wires.
The Specification Of UL1331 Wire
RATING: 150 deg C, 600 Vac, Horizontal flame. Optional - 60 deg C or 80 deg C Oil, Gasoline Resistant.
CONDUCTOR: 30 AWG - 4/0 AWG solid or stranded or Litz cable conductor consists of magnet wire, R/C (OBMW2), rated a minimum of 150 deg C. Each single magnet wire strand is cabled together with the other magnet wire strands to form a conductor. AWG size to be determined by DC Resistance Test. Copper wire/Tinned copper wire/silver plated wire.
INSULATION: Extruded FEP.
| Conductor size | Minimum average thickness | Minimum thickness at any point |
| 30-10 AWG | 20 mils | 18 mils |
| 8-2 AWG | 30 mils | 27 mils |
| 1-4/0 AWG | 45 mils | 40 mils |
COVERING: Optional - Extruded FEP, 2 mils minimum thickness, or glass braid, 7 mils minimum thickness.
STANDARD: Appliance Wiring Material UL 758.
MARKING: General.
USE: Internal wiring of appliances. Wires employing Litz conductors shall be plainly marked on the tag or reel as follows: "Litz conductors are manufactured using solderable magnet wire".
UL1331 Wire Application
UL1331 wire is a type of UL/CSA-certified wire commonly used for internal connections in household appliances, automotive wiring, lighting equipment, heating components, precision instruments, etc. UL 1331 consists of tinn/silver plated copper wire and the heat-resistant TEFLON FEP insulation layer, UL1331 wire has different specifications to meet different current, voltage, and resistance requirements. The more conventional specification is UL1331 18AWG Teflon wire, UL1331 20AWG Teflon wire, UL1331 22AWG Teflon wire, UL1331 24AWG Teflon wire, and UL1331 26AWG Teflon wire.
