UL1371

UL1371

Item Number:UL1371

  • Rated voltage: -
  • Working temperature: -40～+105℃

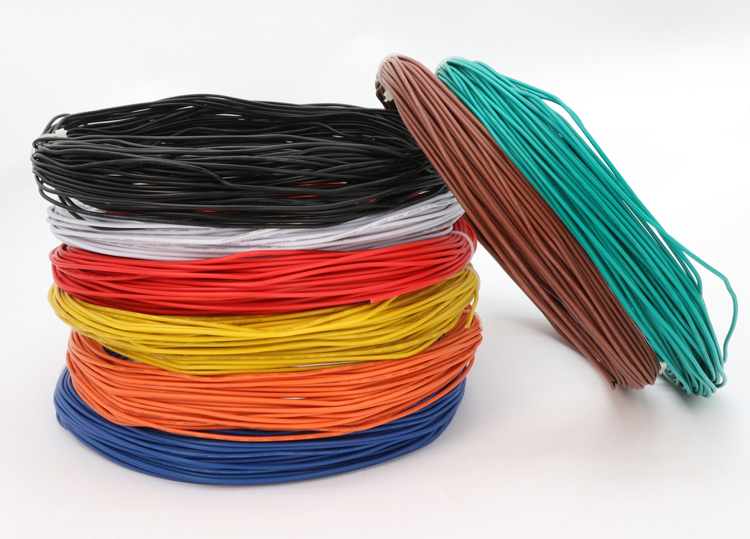

  • Color: red/yellow/blue/white/black/yellow-green/brown, etc.
  • Conductor: solid core or stranded TC/silver-plated copper wire
  • Insulation: FEP

Ratings/Approvals:

105°C  – UL758, UL1581
UL VW-1 Flame Rated
RoHS Compliant

Construction:

Conductors
30 AWG – 10 AWG
Solid or Stranded tinned copper, bare copper, or silver-plated copper
(Other conductor materials available)

Insulating System
FEP/PTFE insulation


Standard Color Coding
Available in Colors or Striped Combinations

Characteristics:

  • High temperature products:
    • Temperature resistance 105 degrees
    • Oil resistance, acid, and alkali resistance
    • Virtually eliminates skin irritation
    • Color stable at elevated temperatures
    • Low Smoke Zero Halogen
  • Suitable for UV, ozone, or moisture exposure
  • Suited for liquid-immersed applications
  • Suitable for applications to -40°C
UL1371
UL1371
Categories

UL1371

Part No. Temp
Rating		 Voltage
Rating		 Awg. Size #
Strands		 Final
O.D. (in)		 Final
O.D. (mm)		 Wgt.
(lbs/ Mft)		 Wgt.
(kg/km)		 Min.Bend
Radius (in)		 UL CSA
1371 105C - 22 7 0.08 2.03 5 7.44 0.64 758 AWM I A/B FT1
1371 105C - 20 7 0.087 2.21 6 8.93 0.7 758 AWM I A/B FT1
1371 105C - 18 16 0.096 2.44 8 11.91 0.77 758 AWM I A/B FT1
1371 105C - 16 7 0.108 2.74 11.64 17.32 0.86 758 AWM I A/B FT1
1371 105C - 14 41 0.12 3.05 16.8 25 0.96 758 AWM I A/B FT1
1371 105C - 12 65 0.137 3.48 25.08 37.32 1.1 758 AWM I A/B FT1
1371 105C - 10 105 0.166 4.22 38.92 57.92 1.33 758 AWM I A/B FT1
1371 105C - 8 133 0.231 5.87 64.35 95.77 1.85 758 AWM I A/B FT1
1371 105C - 6 133 0.307 7.8 105.32 156.74 2.46 758 AWM I A/B FT1

Description

What is UL1371 Teflon wire?

UL1371 wire is a type of Teflon wire, which can be FEP insulated or PTFE insulated. Its rated temperature is 105 degrees Celsius, and there is no voltage requirement. It is more suitable for hook up wires inside low-voltage electrical appliances. Its insulation thickness is much thinner than other Teflon wires, so its wire diameter can be very thin, it is very suitable for very small precision instruments or electronic components as wire leads. the conductor is tinned copper or silver-plated copper, stranded or solid, the min size of UL1371 wire is 36 AWG, and the outside diameter is only 0.4mm, which is really very very thin. ADS CABLE has more than 10 years of making Teflon wires, we can produce 36AWG to 6AWG Teflon wires with the best price and best service.




The specification of the UL1371 Teflon wire

RATING: 105 deg C, Voltage not specified, Horizontal Flame. Optional - 60 or 80 deg C Oil, Gasoline Resistant.
CONDUCTOR: 36 AWG - 6 AWG, Solid or Stranded.
INSULATION: Extruded PTFE or Extruded FEP.

        Conductor size                 Minimum average thickness                 Minimum thickness at any point
36-20 AWG 5.5 mils 5.0 mils
19-16 AWG 8.0 mils 7.0 mils
15-10 AWG 13 mils 12 mils
9-6 AWG 20 mils 18 mils
COVERING: Optional - Extruded PTFE, Extruded FEP, or Extruded PFA, with one or more layers at 3 mils minimum average thickness.
STANDARD: Appliance Wiring Material UL 758.
MARKING: General.
USE: Internal Wiring, where not subjected to movement or mechanical damage.
