20AWG UL1591 Teflon fep coated hook up wire | ADS special cable Co., Ltd

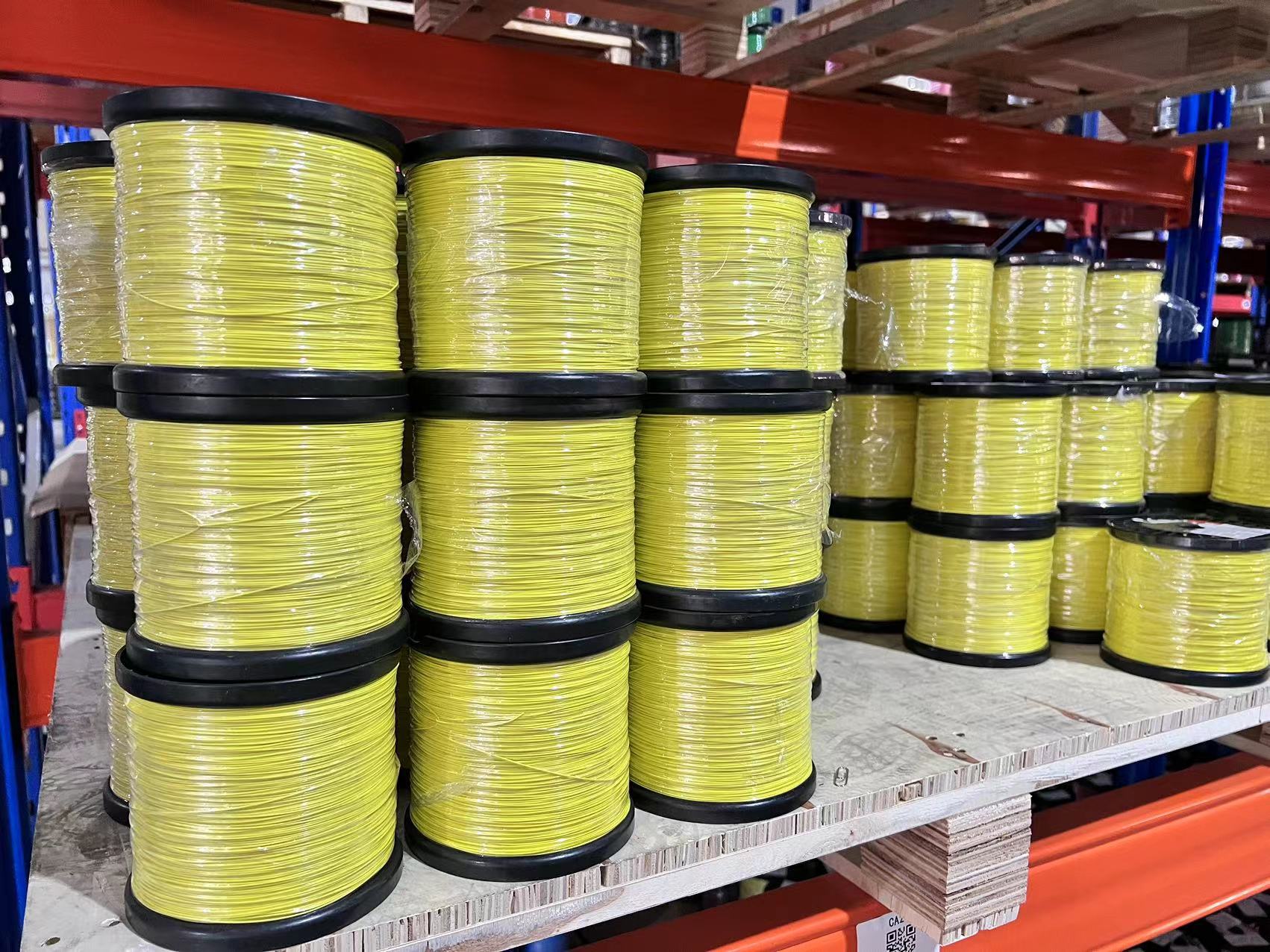

UL1591

Item Number:UL1591

Rated voltage: 300V
Working temperature: -40～+150℃
Color: red/yellow/blue/white/black/yellow-green/brown, etc.
Conductor: solid core or stranded TC/silver-plated copper wire
Insulation: FEP

Ratings/Approvals:

150°C – 300 Volts – UL758, UL1581
UL VW-1 Flame Rated
RoHS Compliant

Construction:

Conductors
30 AWG – 10 AWG
Solid or Stranded tinned copper, bare copper or silver-plated copper
(Other conductor materials available)

Insulating System
FEP insulation

Standard Color Coding
Available in Colors or Striped Combinations

Characteristics:

High temperature products:
- Temperature resistance 150 degrees
- Oil resistance, acid, and alkali resistance
- Virtually eliminates skin irritation
- Color stable at elevated temperatures
- Low Smoke Zero Halogen
Suitable for UV, ozone, or moisture exposure
Suited for liquid-immersed applications
Suitable for applications to -40°C

UL1591

Part No.	Temp Rating	Voltage Rating	Awg. Size	# Strands	Final O.D. (in)	Final O.D. (mm)	Wgt. (lbs/ Mft)	Wgt. (kg/km)	Min.Bend Radius (in)	UL	CSA
1591	150C	300V	22	7	0.08	2.03	5	7.44	0.64	758	AWM I A/B FT1
1591	150C	300V	20	7	0.087	2.21	6	8.93	0.7	758	AWM I A/B FT1
1591	150C	300V	18	16	0.096	2.44	8	11.91	0.77	758	AWM I A/B FT1
1591	150C	300V	16	7	0.108	2.74	11.64	17.32	0.86	758	AWM I A/B FT1
1591	150C	300V	14	41	0.12	3.05	16.8	25	0.96	758	AWM I A/B FT1
1591	150C	300V	12	65	0.137	3.48	25.08	37.32	1.1	758	AWM I A/B FT1
1591	150C	300V	10	105	0.166	4.22	38.92	57.92	1.33	758	AWM I A/B FT1
1591	150C	300V	8	133	0.231	5.87	64.35	95.77	1.85	758	AWM I A/B FT1
1591	150C	300V	6	133	0.307	7.8	105.32	156.74	2.46	758	AWM I A/B FT1

Description

What is the UL1591 wire?

UL1591 wire is an electronic hook up high-temperature wire made of Teflon(FEP material), with a rated temperature of 150C and a rated voltage of 300V. Its insulation thickness is 0.41mm, while the insulation thickness of UL1332 high-temperature wire is 0.33mm. Therefore, the actual voltage of UL1591 is higher than that of UL1332. ADS CABEL can provide UL1591 wires of different specifications and sizes, such as 32AWG UL1591 Teflon wire, 30AWG UL1591 Teflon wire, 28AWG UL1591 Teflon wire, 26AWG UL1591 Teflon wire, and so on, also we can custom the color for you, like red, black, blue, transparent, yellow, pink, more than 20 colors. UL1591 wires are commonly used as connecting wires inside various electronic devices. Compared to PVC, silicone, PP, and other materials, UL1591 wires are thinner, more resistant to high/ low temperatures, and more resistant to cold. Its uniqueness also determines its higher performance and quality.
