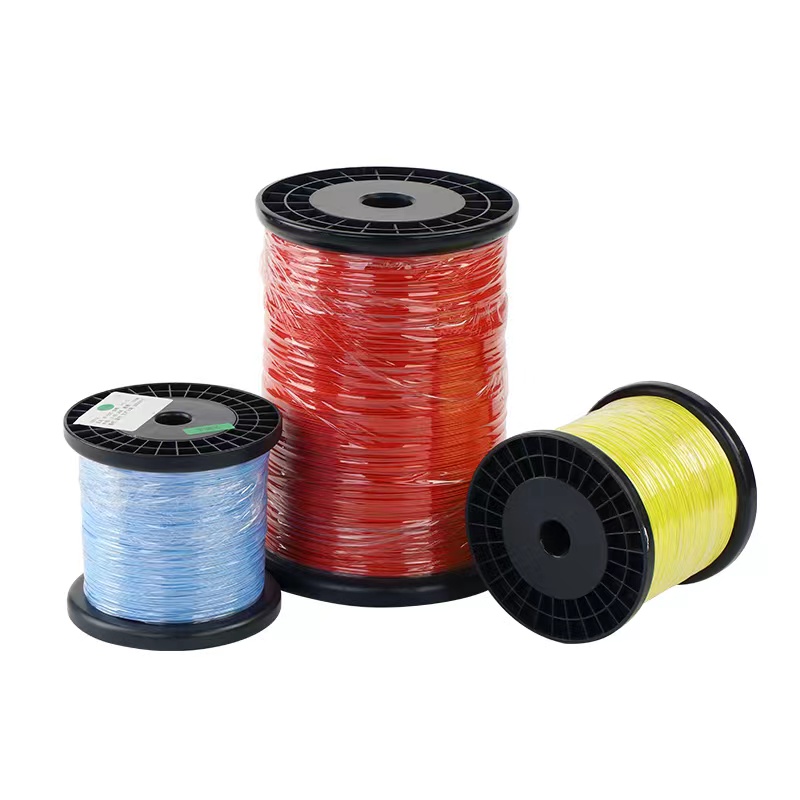

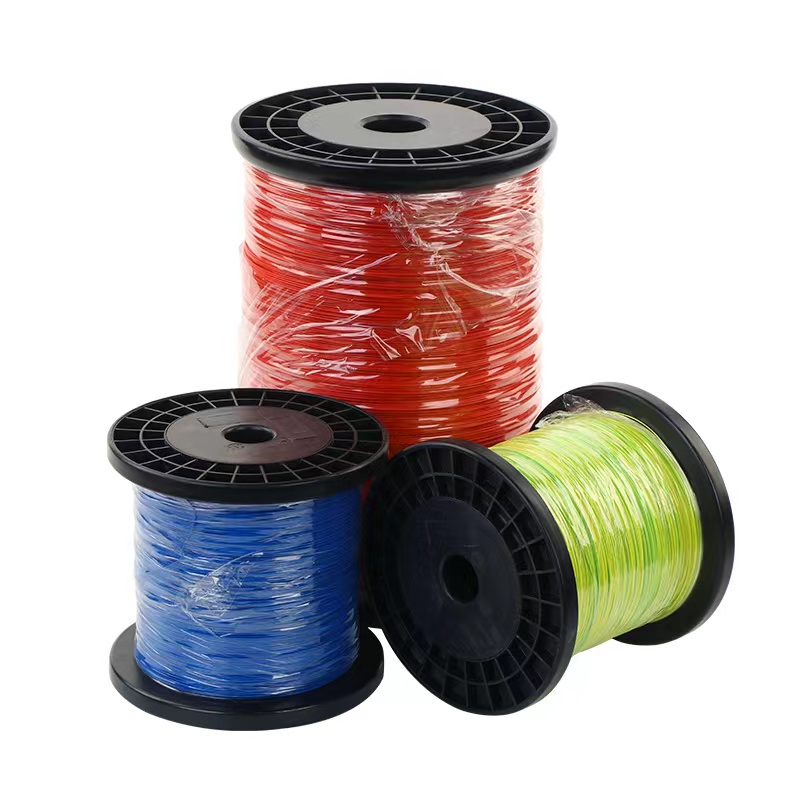

UL1901

Item Number:UL1901

Rated voltage: 600V
Working temperature: -40～+200℃
Color: red/yellow/blue/white/black/yellow-green/brown, etc.
Conductor: solid core or stranded TC/silver-plated copper wire
Insulation: FEP

Ratings/Approvals:

200°C – 600 Volts – UL758, UL1581
UL VW-1 Flame Rated
RoHS Compliant

Construction:

Conductors
30 AWG – 4/0 AWG
Solid or Stranded tinned copper, bare copper or silver-plated copper
(Other conductor materials available)

Insulating System
FEP insulation

Standard Color Coding
Available in Colors or Striped Combinations

Characteristics:

High temperature products:
- Temperature resistance 200 degrees
- Oil resistance, acid, and alkali resistance
- Virtually eliminates skin irritation
- Color stable at elevated temperatures
- Low Smoke Zero Halogen
Suitable for UV, ozone, or moisture exposure
Suited for liquid-immersed applications
Suitable for applications to -40°C

UL1901

Part No.	Temp Rating	Voltage Rating	Awg. Size	# Strands	Final O.D. (in)	Final O.D. (mm)	Wgt. (lbs/ Mft)	Wgt. (kg/km)	Min.Bend Radius (in)	UL	CSA
1901	200C	600V	22	7	0.08	2.03	5	7.44	0.64	758	AWM I A/B FT1
1901	200C	600V	20	7	0.087	2.21	6	8.93	0.7	758	AWM I A/B FT1
1901	200C	600V	18	16	0.096	2.44	8	11.91	0.77	758	AWM I A/B FT1
1901	200C	600V	16	7	0.108	2.74	11.64	17.32	0.86	758	AWM I A/B FT1
1901	200C	600V	14	41	0.12	3.05	16.8	25	0.96	758	AWM I A/B FT1
1901	200C	600V	12	65	0.137	3.48	25.08	37.32	1.1	758	AWM I A/B FT1
1901	200C	600V	10	105	0.166	4.22	38.92	57.92	1.33	758	AWM I A/B FT1
1901	200C	600V	8	133	0.231	5.87	64.35	95.77	1.85	758	AWM I A/B FT1
1901	200C	600V	6	133	0.307	7.8	105.32	156.74	2.46	758	AWM I A/B FT1

Description

What is UL1901 Teflon wire?

UL1901 is a high temperature wire, UL1901 is a Teflon wire, UL1901 wire is a hook up wire used internally in electronic and electrical equipment. The conductor of the UL1901 wire is tin plated copper or silver plated copper, and the insulation of the UL1901 wire is FEP material, so the rated temperature of the UL1901 wire is 200 degrees. the rated voltage of the UL1901 wire is 600V, same as the UL1330, but the thickness of the insulation is a little smaller than UL1330 wire. So when you need a 200 degree 600V FEP Teflon high temperature wire, please choose UL1901 wire, the price is cheaper than UL1330 wire.
